- Power 100/50/25 W
- Impedance (100V) 100/200/400/ or 1x4 ohm
- Frequency Response 49 - 22.000 Hz
- SPL EN54-24, Pmax/4m, 95,1 dB
- Sensitivity EN54-24, 1W/4m 74,3 dB
- Sensitivity EN54-24, 1W/1m 86,3 dB
- Dispersion -6dB, 500Hz h=160° v=230°
- Dispersion -6dB, 1KHz h=65° v=140°
- Dispersion -6dB, 2KHz h=120° v=100°
- Dispersion -6dB, 4KHz h=145° v=68°
- Connector 2-pin ceramic block
- Terminal diameter 2,3 mm
- Maximum cable passage 4mm²
- Mounting bracket
- Temperature range -25 / +70 °C
- IP Rating IP66
- ball impact resistant in accordance with DIN 18032 Part 3
Products voice alarm systems

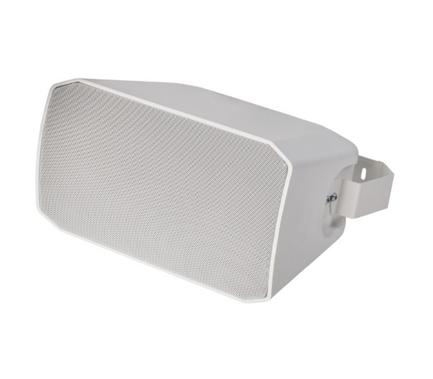

2-way array loudspeaker
High-performance 2-way array loudspeaker for voice alarm, 100V, EN 54-24 certified
Art-Nr.: 37538 | SMX-EN-PS100W-2W-white
Product Information
Technical Specifications
| Weight | 6,5 kg |
| Color | white |
| Dimensions (H x D) | 341x245x192mm |
